Cue Overview

Cue is a distributed, in-memory job queue with strong consistency via Raft.

Architecture

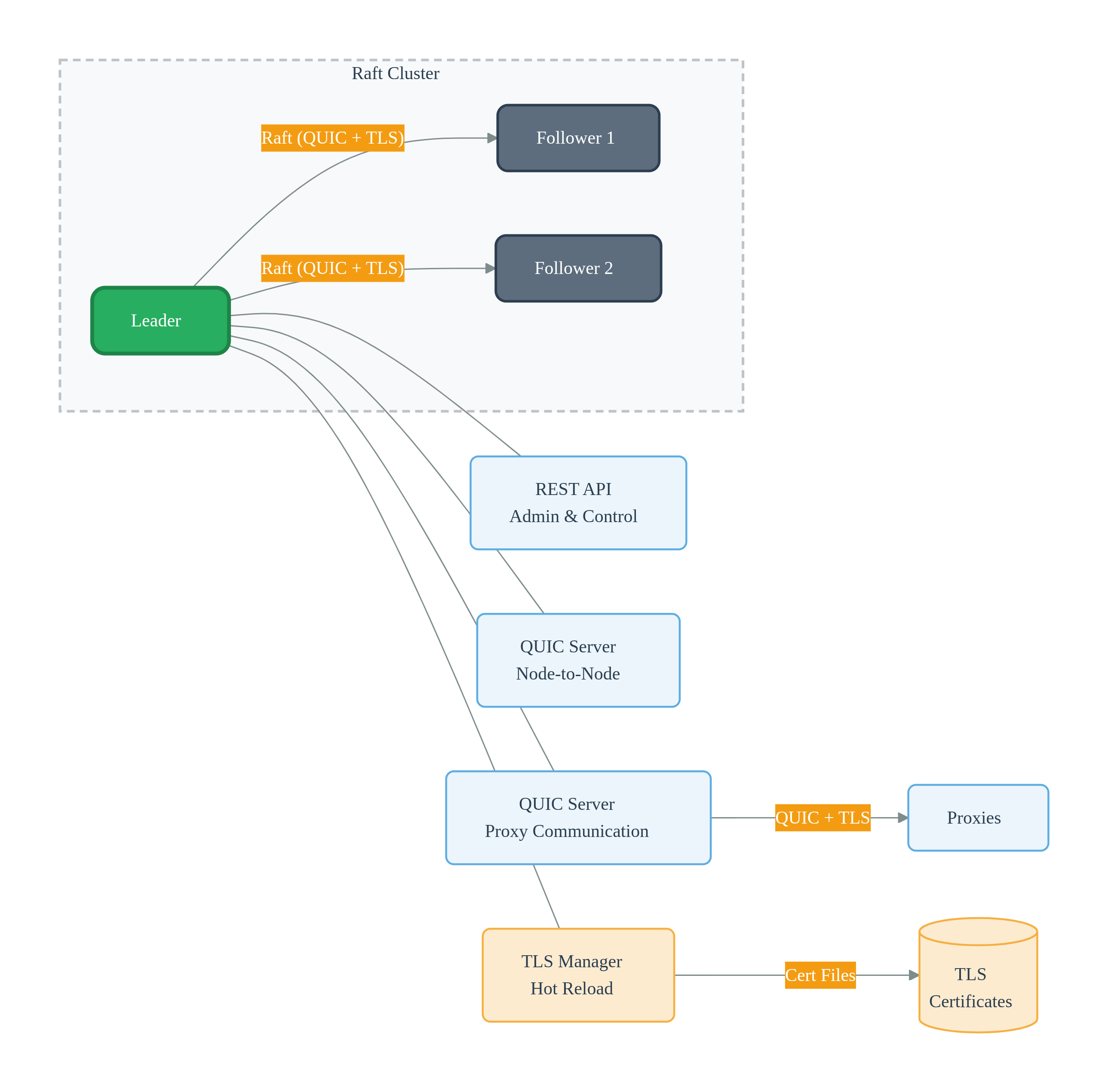

Cue Cluster Architecture with Multiple Proxies

Clients communicate with the cluster through proxies. The leader handles all writes, with Raft ensuring consistency across followers.

How It Works

Data Model

  • Topics are logical partitions for organizing jobs
  • Each topic is an in-memory state machine
  • Every node holds all topics - no sharding or data loss on leader failover
  • No snapshots - state is fully in-memory (backed by WAL only)

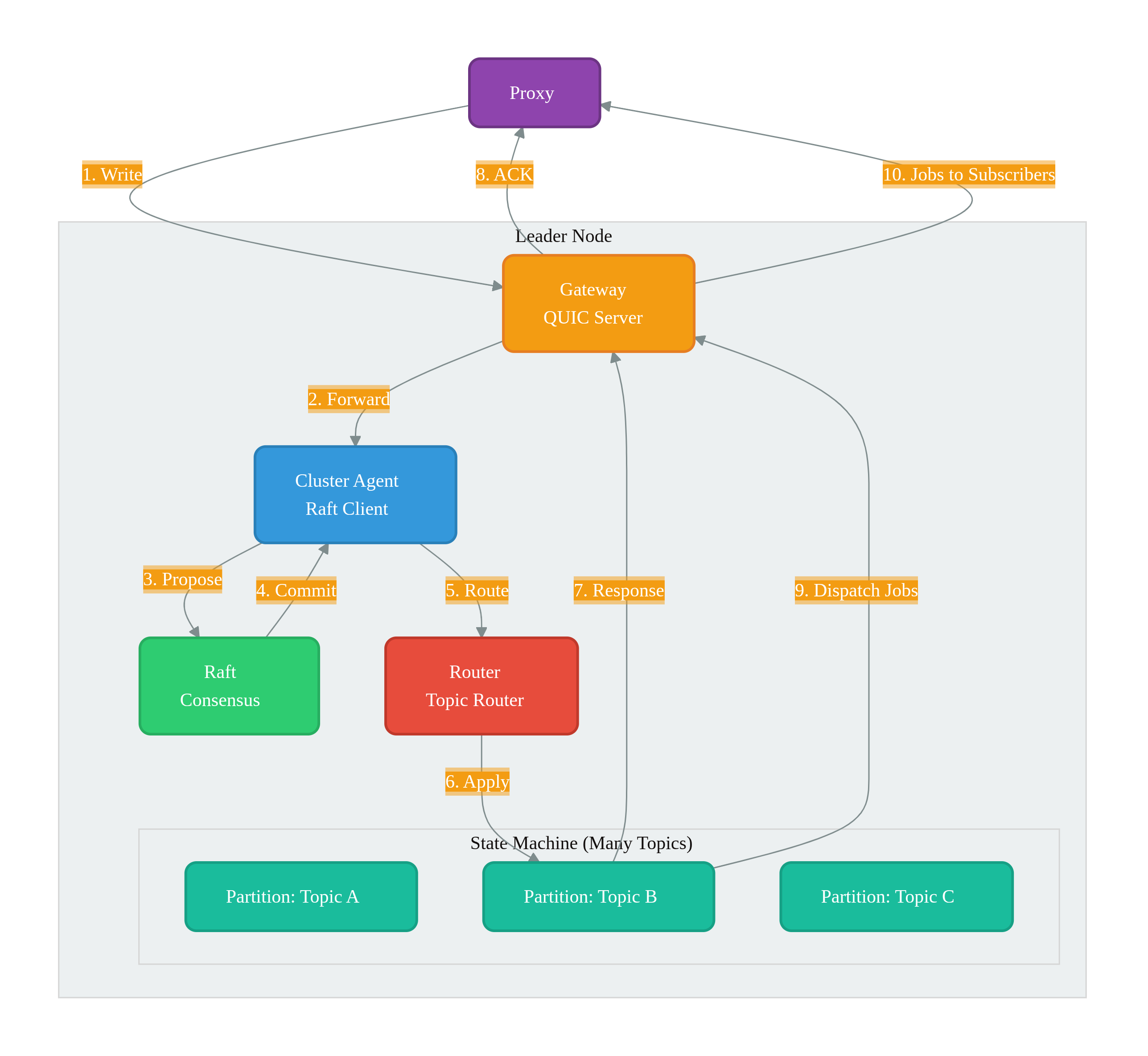

Write Path

  1. Proxy sends request to leader's Gateway
  2. Gateway forwards to Cluster Agent
  3. Agent proposes to Raft for consensus
  4. On commit, the Router directs to the correct Partition
  5. Partition applies to state, response flows back to proxy

Read/Dispatch Path

  1. Each partition dispatches jobs to proxies using round-robin selection, with batch sizes proportional to each proxy's number of subscribed consumers for that topic
  2. Jobs are sent back through Gateway to proxies
  3. Proxies load-balance to subscribed consumers
  4. Consumers ACK on completion → WAL truncation

Key Concepts

Raft Consensus

  • Strong consistency - all writes go through the leader
  • Automatic failover - on leader failure, a new leader is elected
  • Log replication across followers ensures durability

Write-Ahead Log (WAL)

  • Segmented files for durability
  • Truncated periodically up to the oldest safe index (all jobs ACK'd or DLQ'd)
  • Result: WAL size stays limited - no unbounded growth

Retries & Failure Handling

  • Automatic retries with exponential backoff
  • After max retries, jobs move to Dead Letter Queue (DLQ)
  • DLQ jobs require manual inspection

Component Overview

Gateway

  • QUIC server for proxy communication
  • Own TLS certificate files (can be separate from cluster certs)

Cluster Agent

  • Manages node-to-node QUIC communication
  • Can share gateway certs or use separate ones

Raft Layer

  • Core consensus engine with shared storage
  • Decoupled from partitions

Partitions & Router

  • Router directs requests by topic
  • Partitions are in-memory state machines for each topic

API Server

  • Admin & control REST API
  • Health checks and Prometheus metrics

Communication Matrix

Component Protocol TLS
Gateway → Proxies QUIC Own certs
Cluster Agent → Nodes QUIC Shared/separate certs
API Server → Admin HTTP/REST Optional
